Realtime Visual Music
Six live channels → one screen each → one speaker each · one device, one clock
6 × MIC IN · 48 kHz
6 × DISCRETE LINE OUT
6 × DISPLAY · 60 fps
01SOURCES6 LIVE CHANNELS
02CAPTUREONE CLOCK · ONE DEVICE
8 × MIC PRE
48 V PER CH
10 × LINE OUT
USB-C
48 kHz
ASIO 64 smp
INPUT ACTIVITY
48 V PER CHANNEL

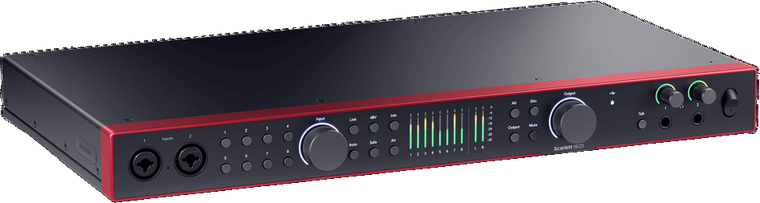

Focusrite Scarlett 18i20 Gen 4 — the same interface platform the See Song Studio Hardware Edition already runs,
now on the input side. Six mics land on six preamps; six line outs carry each channel back to its own speaker.
One device clock → zero inter-channel skew.
6 × XLR IN · 6 × BALANCED LINE OUT
03ANALYSIS ENGINE~94 FRAMES/S / CH
per channel: RMS · PEAK · 8-BAND · CENTROID · ONSET
FFT 2048 · hop 512 @ 48 kHz → feature frame every 10.7 ms → GPU
FFT 2048 · hop 512 @ 48 kHz → feature frame every 10.7 ms → GPU
04VISUAL FIELDONE FULLSCREEN WINDOW PER DISPLAY
05 · DISCRETE RETURN
Every channel gets its own speaker feed — level, EQ and mute per channel, mixed in the interface itself. Audio never waits on the visuals.
MIC0 ms
→
PRE + ADC1.3 ms
→
USB / ASIO 64 smp1.3 ms
→
ANALYSIS HOP10.7 ms
→
GPU FRAME16.7 ms
→
PANEL~5 ms
SOUND → LIGHT≈ 35 ms
SPEAKER RETURN ≈ 1.1 msDIRECT MONITOR MIX
